VCTOOL MODULES
Por el momento, esta sección no está traducida al español. ¡Nos disculpamos!
SUBSCRIPTIONS: PREMIUM, FULL, TEAM, LIGHT
BASIC MODULE PRICE: €52

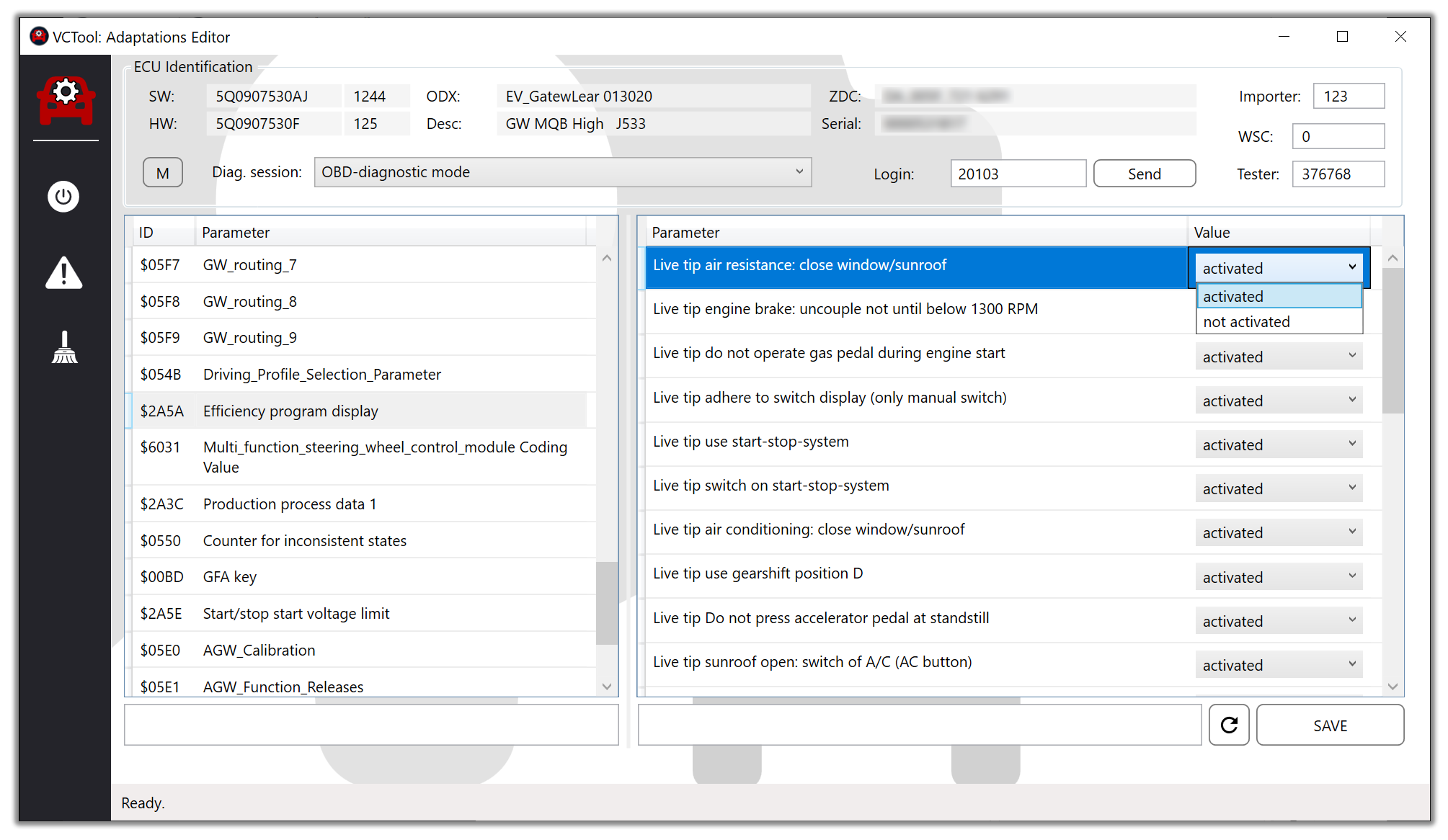

- Working with encodings and adaptations in manual mode
- Working with basic settings
- Uploading datasets
Manual mode:
SUBSCRIPTIONS: PREMIUM, FULL
BASIC MODULE PRICE: €78
The ECU Flasher allows you to flash control units, as well as load parametric data in ODX, FRF, and VCTF formats.
VCTool has an extensive online database with firmware and parameters, which is constantly updated. All files are checked for compatibility using meta-information in the firmware containers. Demonstration of online flashing: video
ECU Flasher supports loading datasets into zFAS control units on the MLBEvo platform with external signature storage (.sig files).
NOTE: Flashing is only available when using J2534 adapters!
SUBSCRIPTIONS: PREMIUM, FULL, LIGHT
BASIC MODULE PRICE: €8
The SWaP code manager is used to view the SWaP codes installed in the car, as well as to quickly download offline certificates that are used to activate the SWaP codes. In future versions, it is planned to implement the order of offline certificates directly from the program.
SUBSCRIPTIONS: PREMIUM, FULL, LIGHT
BASIC MODULE PRICE: €48
- Fast measurement (>5000 msr/min with J2534 interface)
- Creating profiles
- Exporting data to. csv
- Plotting

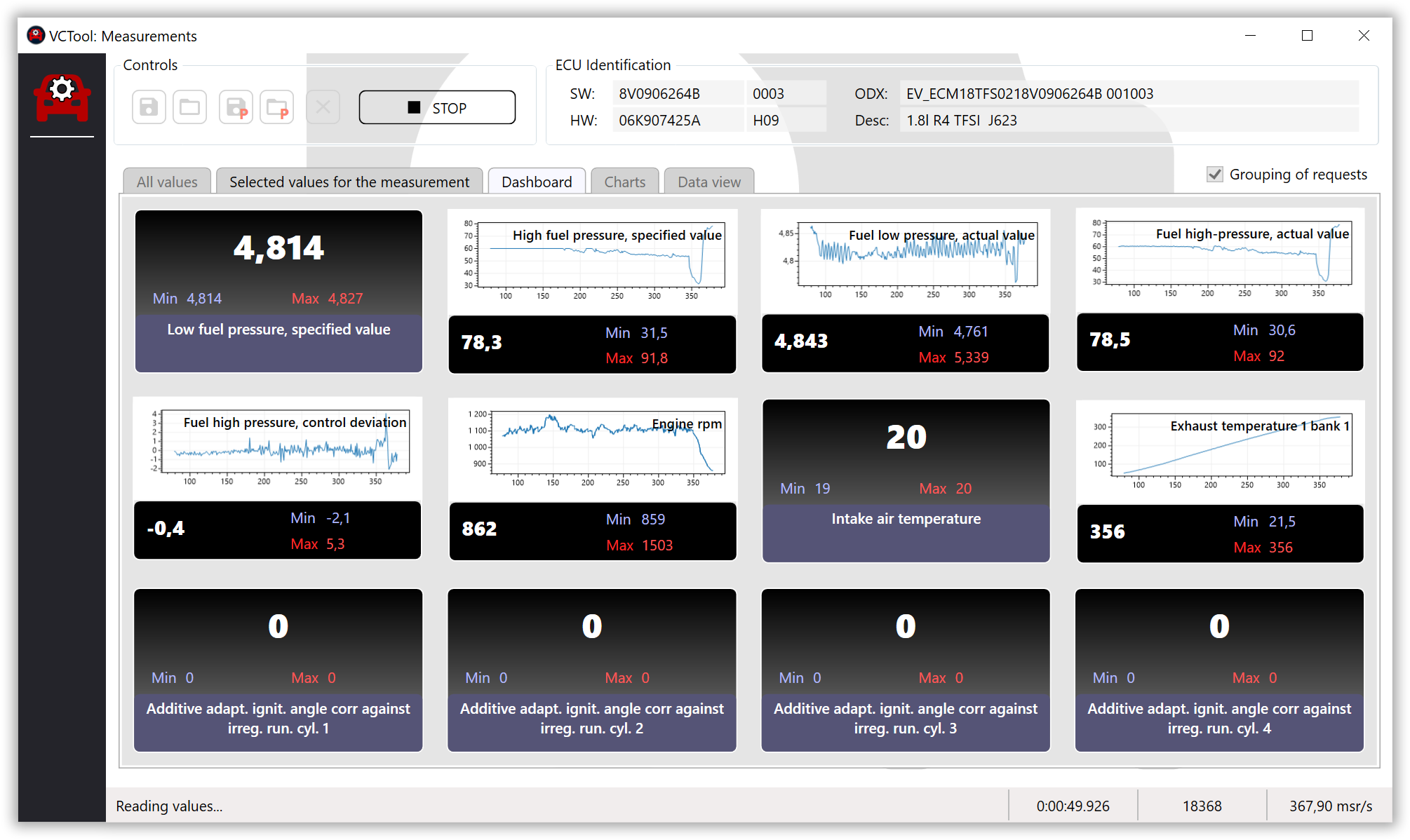

The module allows monitoring the parameters of the control unit at a high speed (about 12 measuring per second when monitoring nine values simultaneously for each parameter). During operation, the parameters are displayed on the indicator panel, where each parameter can be presented both in numerical (text) form, and in the form of a signal graph (if the parameter is numeric).
After the completion of the session of reading the parameters, the received data can be viewed both in graphical and tabular form.
If you are constantly dealing with measurements, you will be able to save measurement profiles! This greatly simplifies the work and saves time!
SUBSCRIPTIONS: PREMIUM, TEAM, FULL
BASIC MODULE PRICE: €78
VCTool has a powerful tool for working with backups – it allows you to create a full scan of the car, which includes codings, adaptations, fault codes, as well as parameter sets of infotainment system modules containing audio system settings.
SUBSCRIPTIONS: PREMIUM, TEAM, FULL
BASIC MODULE PRICE: €78

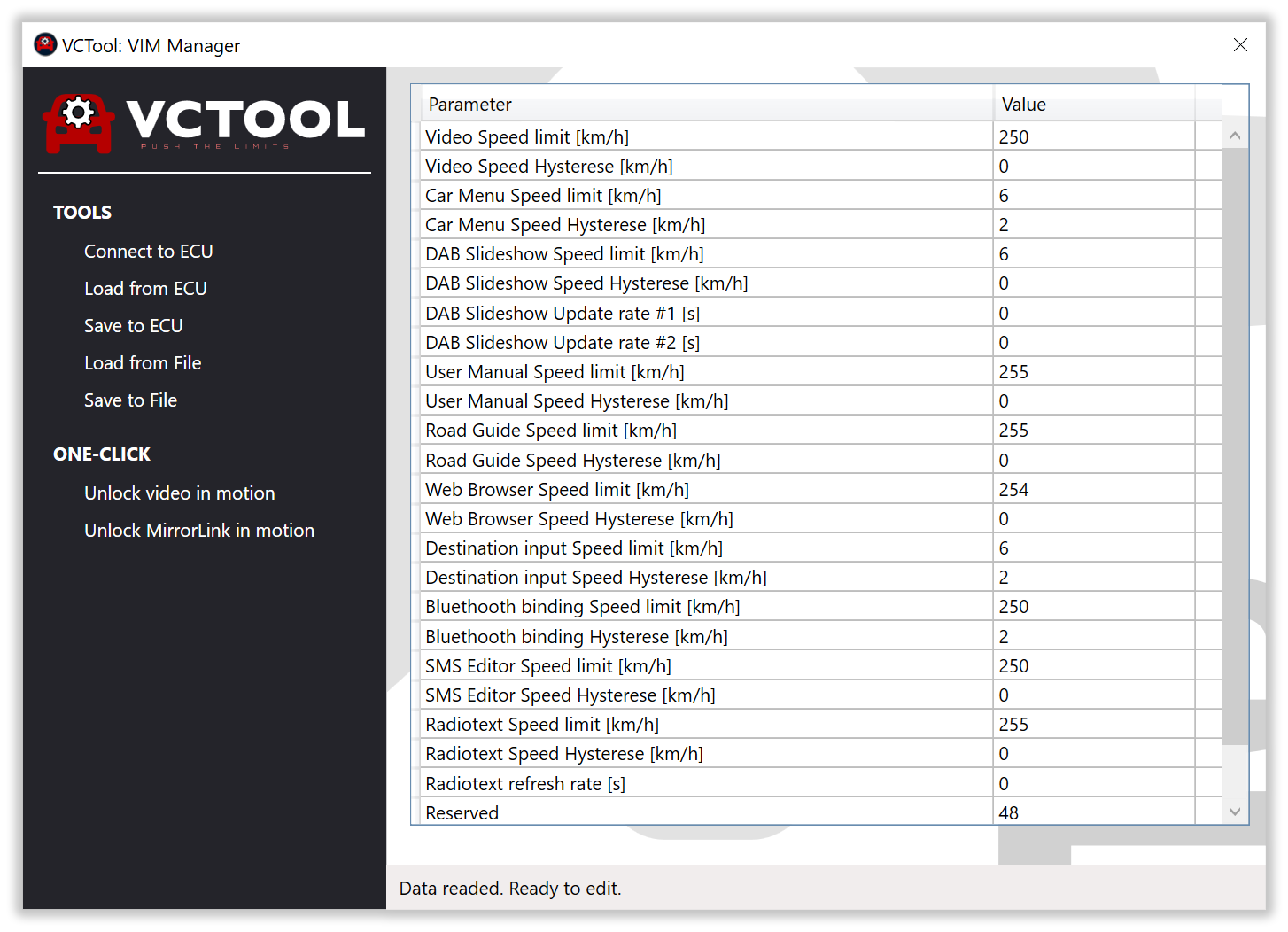

The module supports reading, editing and writing of lock data for MIB1, MIB2 and MIB2.5 modules. For MIB3 modules, only data writing is available.
To quickly change values, the module has two function buttons: to unlock video in motion and to unlock MirrorLink in motion.
SUBSCRIPTIONS: PREMIUM, TEAM
BASIC MODULE PRICE: €8

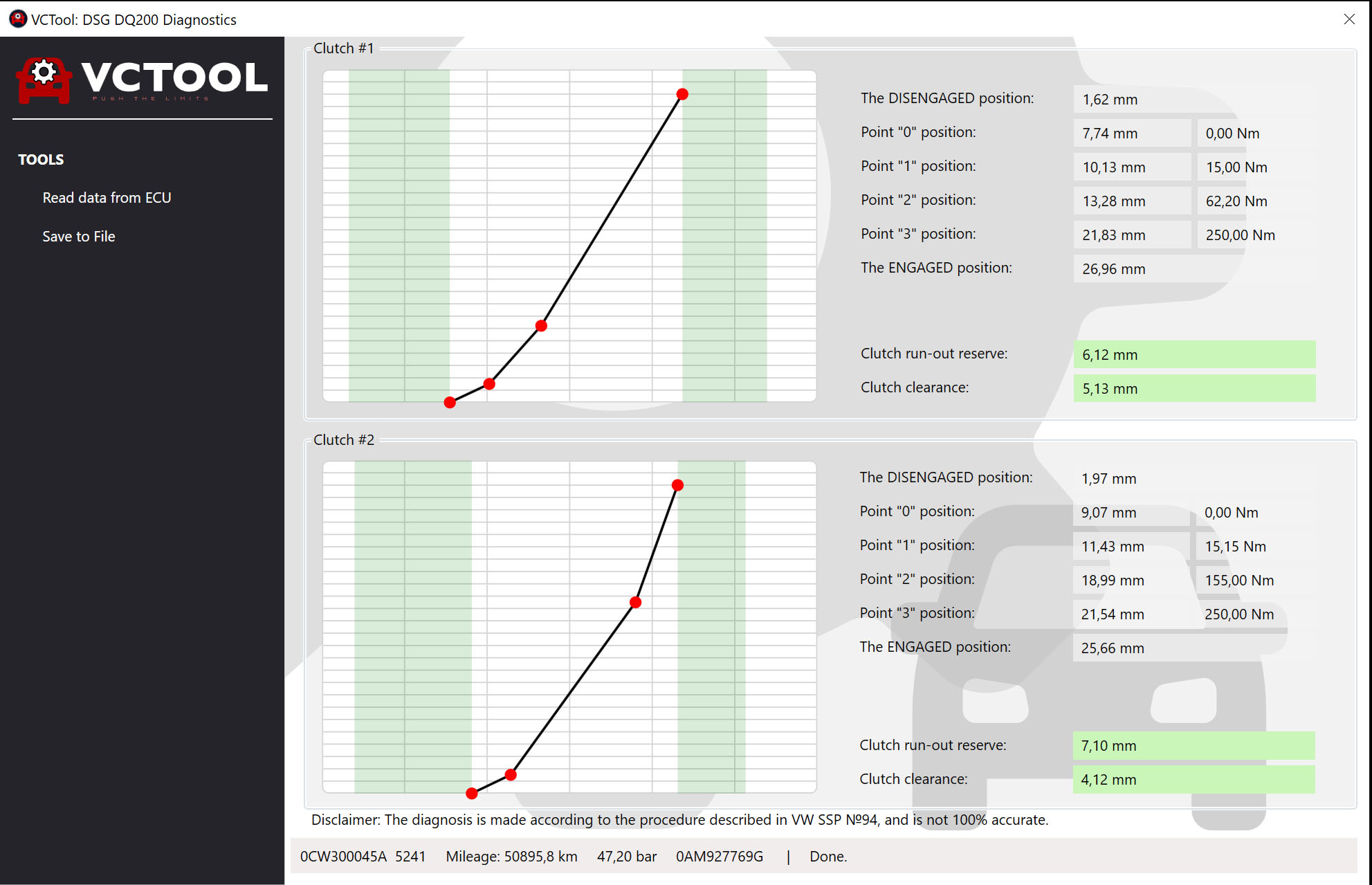

Allows you to diagnose the condition of the clutch package of the DSG / S-Tronic DQ200 box, in accordance with the procedure described in VW SSP No. 94
SUBSCRIPTIONS: PREMIUM, TEAM
BASIC MODULE PRICE: €10
To configure the lighting channels on the MQB platform, the VCTool program provides the Lighting Configurator module.
The module is a control point for the adaptation channels associated with the operation of lighting, which allows you to search for the necessary channels by the function of interest (upper part of the window), configure each channel, as well as apply quick modifications, such as: activating the rear daytime running lights, activating or deactivation of the cornering light function through the front fog lamps, etc.
SUBSCRIPTIONS: PREMIUM
BASIC MODULE PRICE: €10
Allows you to create and upload your own tire pressure monitoring system profiles to the control unit!
SUBSCRIPTIONS: PREMIUM
BASIC MODULE PRICE: €8
- The history of the activation functions
- Viewing coding results
SUBSCRIPTIONS: PREMIUM, TEAM
BASIC MODULE PRICE: €10
The editor of color schemes allows you to customize color sets of atmospheric lighting, as well as change the binding of colors to motion profiles.
BASIC MODULE PRICE: €50
Allows you to encrypt files with datasets and bind them to a specific user, VIN, or serial number of the control unit.
It is indispensable when selling confidential files with datasets.
SUBSCRIPTIONS: PREMIUM, TEAM
BASIC MODULE PRICE: Each preset has its own price
Allows you to quickly activate hidden functions and configure existing ones.
SUBSCRIPTIONS: BASIC, PREMIUM, TEAM
BASIC MODULE PRICE: Free
Using the DTC Reader module, you can view the fault codes in the installed control unit. In this case, you can view the list of errors both throughout the vehicle (start viewing fault codes from the main window), and for each block separately (starting viewing DTCs from the list of control units).
SUBSCRIPTIONS: BASIC, PREMIUM, TEAM
BASIC MODULE PRICE: Free
The “Control units” module allows you to code of the hardware list in the Gateway control unit, view and save the current list of ECU’s with identifiers to a text file.
BASIC MODULE PRICE: €25

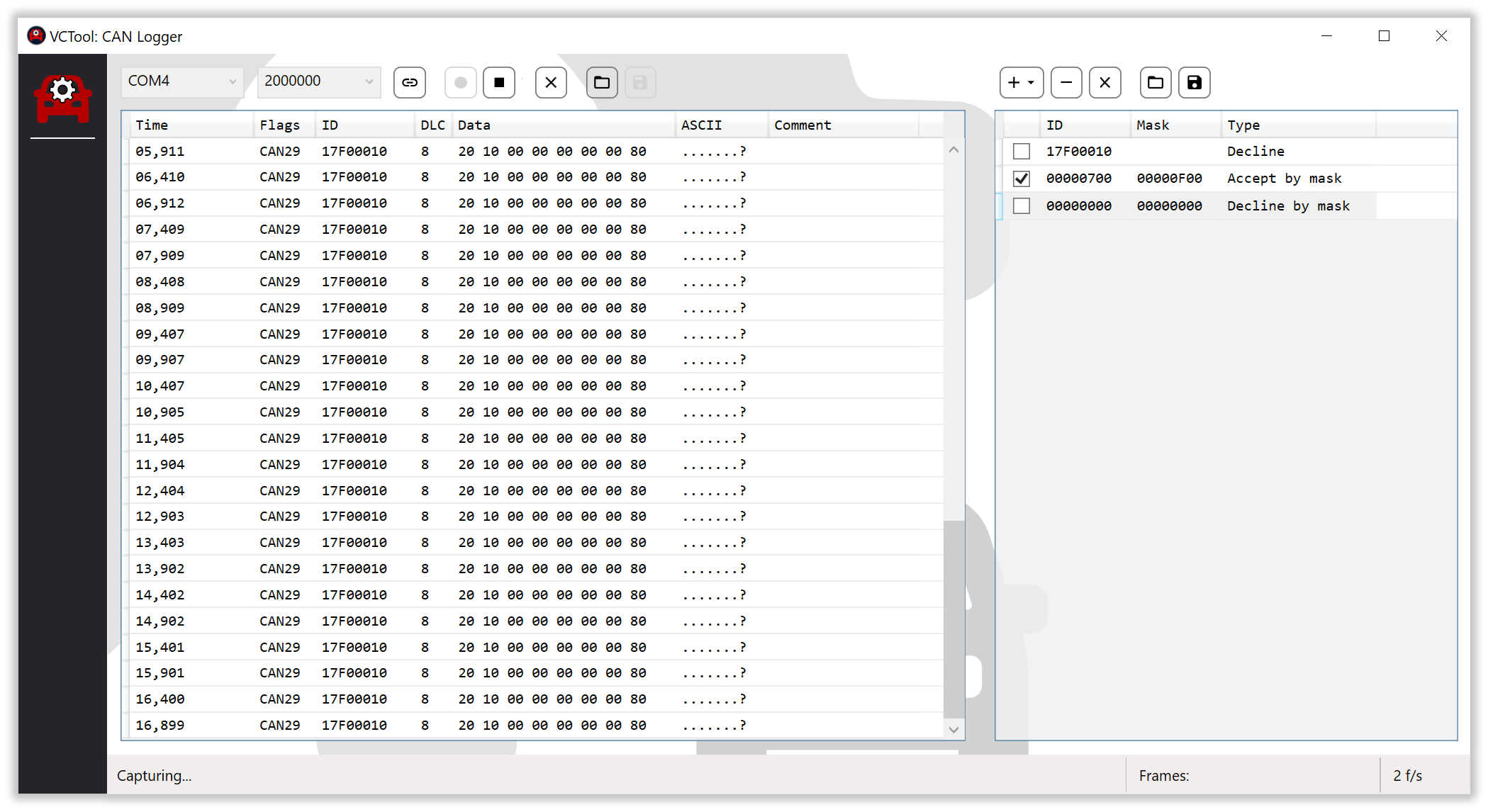

Allows you to capture CAN bus frames using CAN-Hacker devices that work through the Lawicel protocol. Convenient filtering and analysis mechanisms.
